Recieving card HD-R716

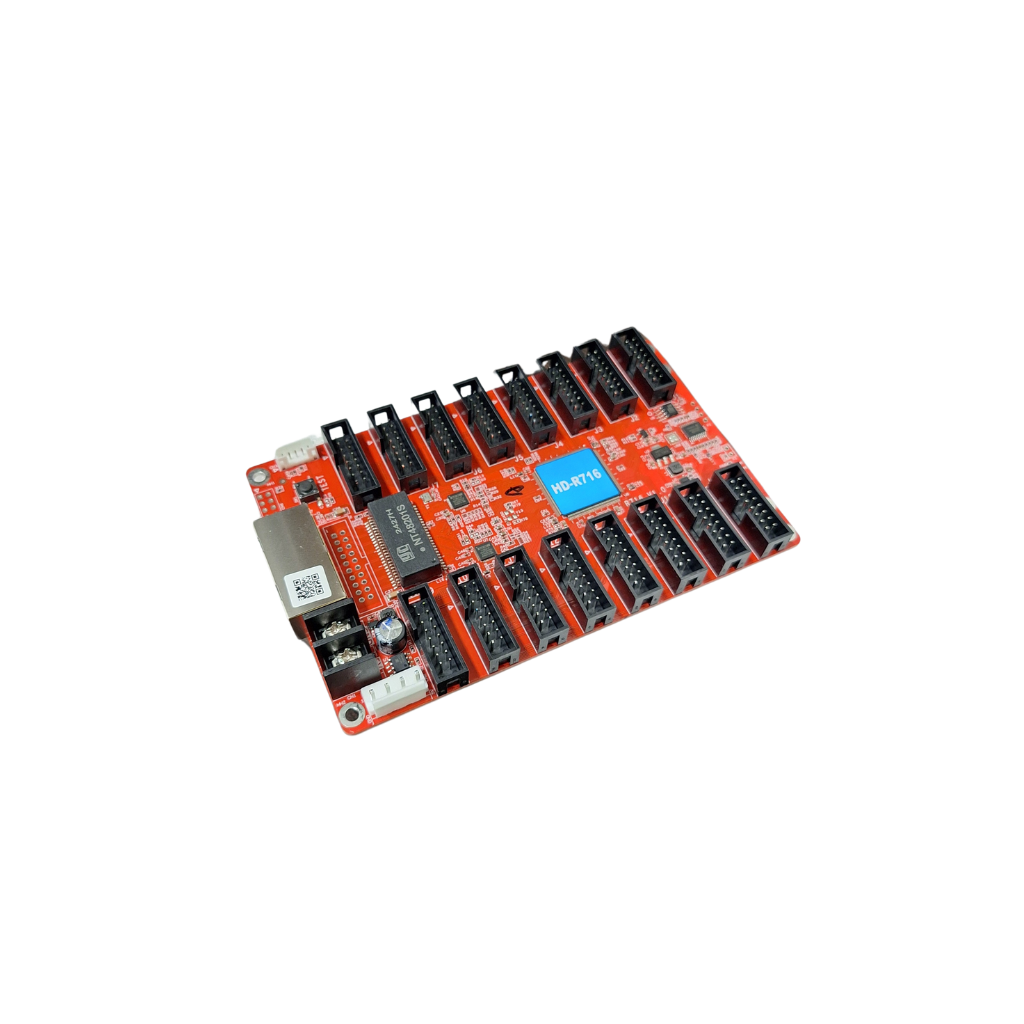

Product Description: Huidu HD-R716 LED Controller

Overview: Huidu HD-R716 is an advanced LED receiver card designed to support high-resolution full-color LED displays. It supports both synchronous and asynchronous modes, providing flexibility and ease of integration. With sixteen HUB75E interfaces and stable performance, HD-R716 is an ideal solution for a wide range of LED applications.

Key Features:

• Control system: Supports synchronous and asynchronous modes.
• Output ports: Equipped with sixteen HUB75E interfaces to ensure stable data transmission.
• Broad compatibility: Supports all conventional chip modules and mainstream PWM modules.
• Flexible Scanning: Compatible with any scanning mode from static to 1/128 scan, with support for spot and blank settings.
• Communication: Uses a gigabit network port for efficient data transmission.
• High loading capacity:
  • Conventional chip & ShiXin LS chip: 256 × 1024 pixels
  • PWM chip: 512 × 1024 pixels
• Smart Setup: Smart screen line settings for quick setup and easy display array adjustment.
• Integrated Test Function: Built-in screen test mode to evaluate brightness uniformity and flatness of the module.
• Multi-card sync: Nanosecond-level sync ensures precise multi-card connections.

Specification:

Applications: Huidu HD-R716 controller is widely used in various LED display configurations including:

• Advertising LED displays for indoor and outdoor use
• Stage and event screens
• High resolution information boards
• LED Advertising and Commercial Signage

Compatible with a full range of HD media players and video processors
