About the product: One-piece LED screen for indoor use. Equipped with sturdy stands for stability and ease of installation. Also available in a version with a metal stand on castors with brakes. An ideal solution for shops, exhibitions and many other indoor applications. Can be run as a standalone unit or combined into one large image. Versions from P2.5 to P1.53 feature protective GOB module covers.
Main features and functionality:
GOB Protection: P2–P1.53 versions with module covers — LEDs are safe during transport.

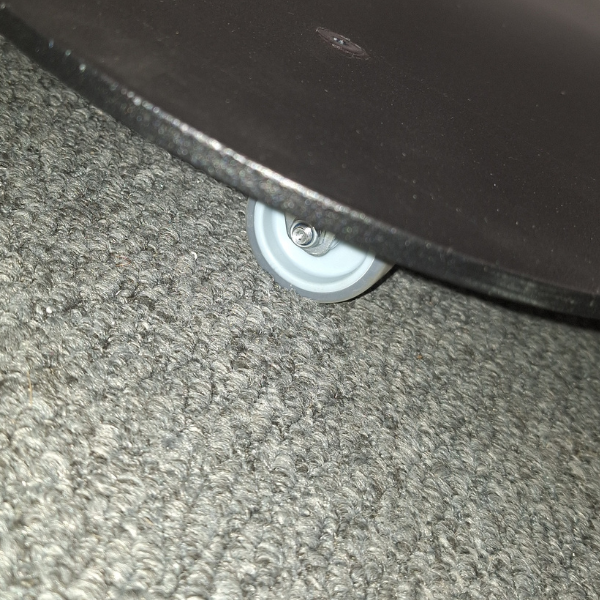

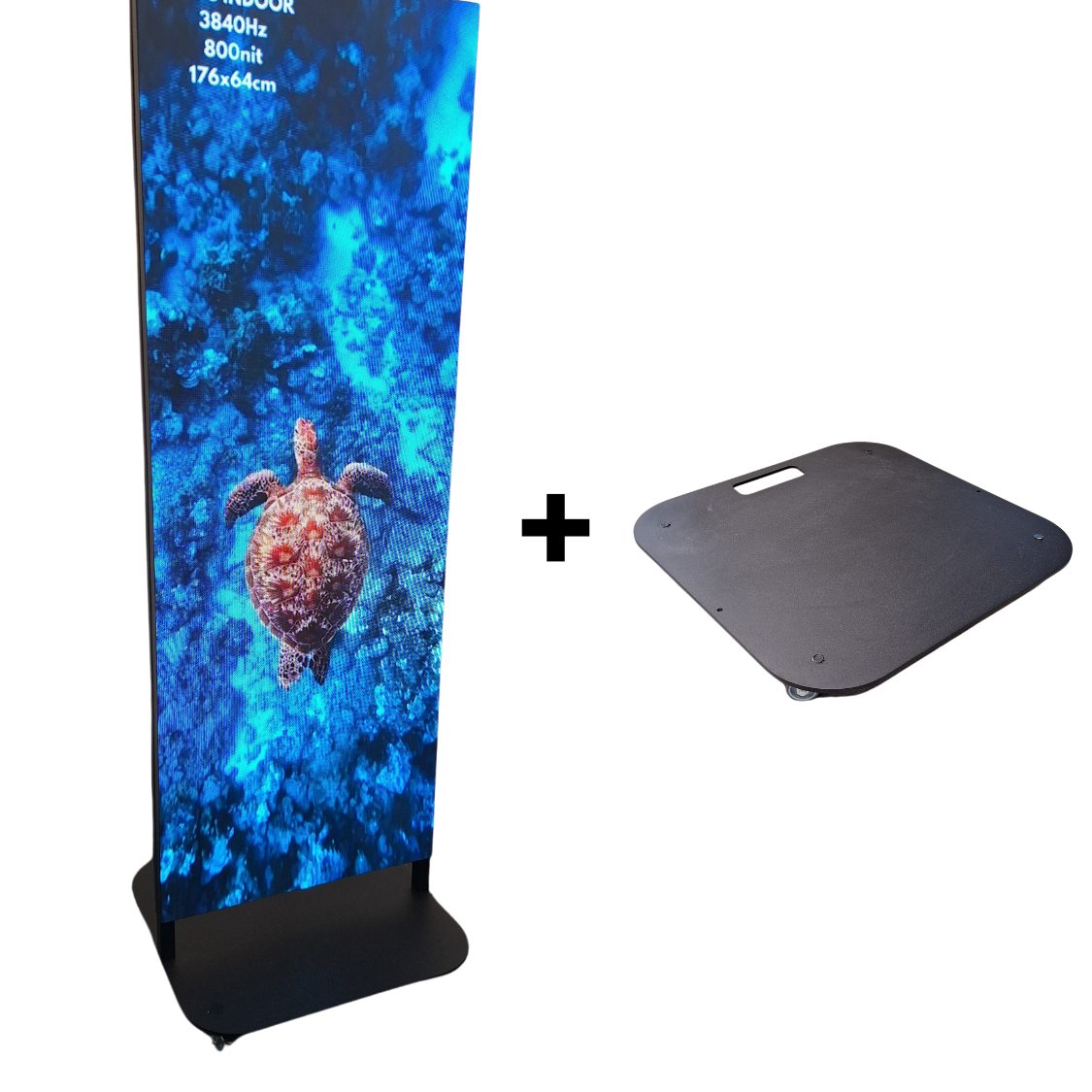

Two base types: Legs or plate with castors and brakes.
Premium Components: Sanan brand SMD LEDs.
Flexible control: LAN, Wi-Fi and remote management via internet cloud.
Mounting and fitting:
Base: Legs or plate with castors and brakes — selectable when ordering.
Customization: Option for custom production in other sizes.
Detailed Technical Specifications
Parameter
P2.5
P2
P1.86
P1.53
Pixel pitch (mm)
2.5
2
1.86
1.53
Resolution 176×64 cm
704×256 px
880×300 px
946×344 px
1144×416 px
Resolution 192×64 cm
768×256 px
960×300 px
1032×344 px
1248×416 px
Resolution 192×96 cm
768×384 px
960×480 px
1032×512 px
—
LED type
SMD2121
SMD1415
SMD1415
SMD1212
LED manufacturer
Sanan
Brightness (cd/m²)
700–800 nits
Viewing angle
Horizontal: 170° / Vertical: 140°
Refresh rate
3840 Hz
Scanning
1/32
1/40
1/43
1/52
Max. power consumption
300–450 W
Avg. power consumption
250–400 W
Input voltage
AC 230 V ±10%
Control
LAN, Wi-Fi and remote management via internet cloud.

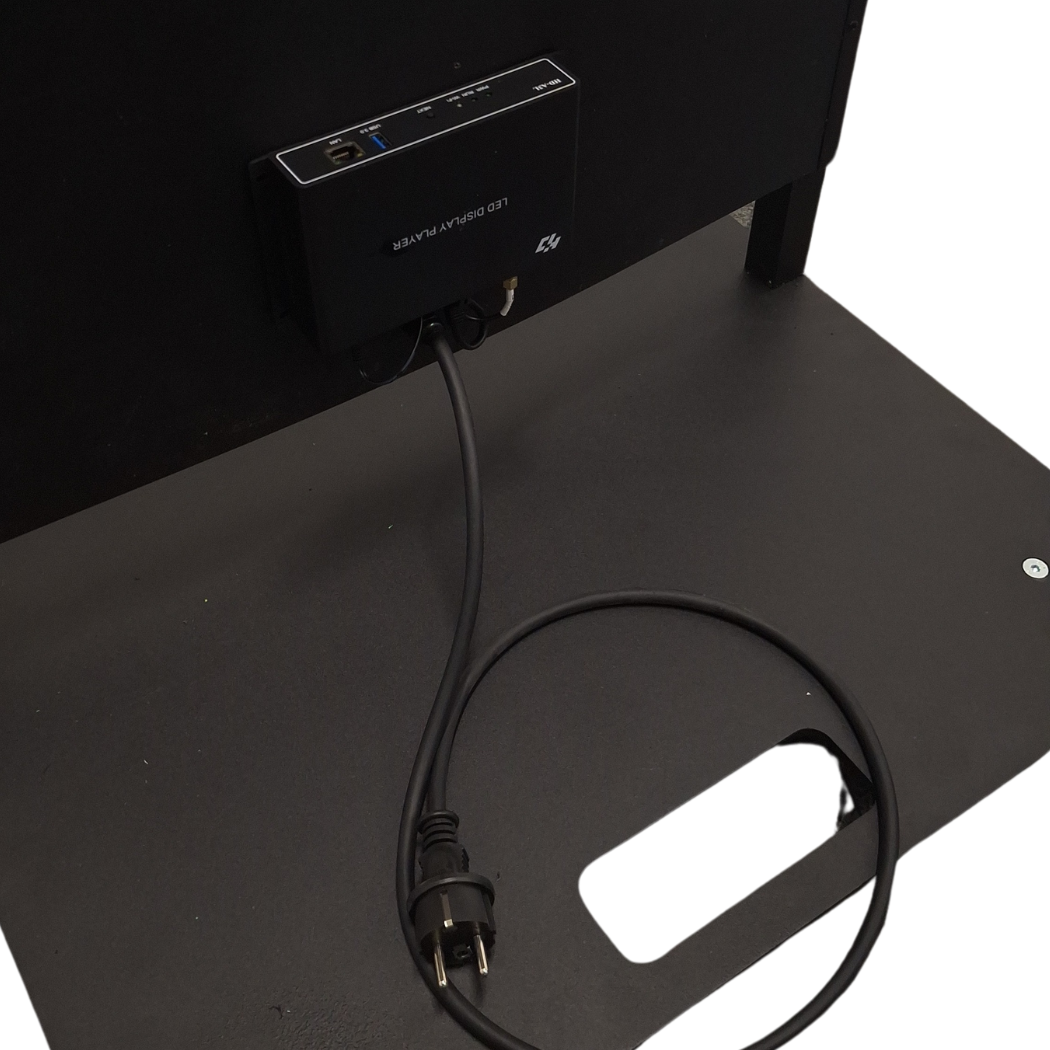

Built-in high-quality control card supporting various file formats (video, graphics, GIF).
Optional synchronous controller with HDMI port available for playing content directly from input signal.
🏢 Application
🏢 Conference roomsPresentations and meetings
🏪 Shops and galleriesAdvertising and information
🎪 Events and exhibitionsDisplays and trade fairs
🏨 Lobbies and receptionsInformation and branding
Certificates and Warranty
✅ CE✅ RoHS✅ 2-year Warranty✅ EU Production
Information for Businesses
📦 Custom Production: Possibility to order in other sizes according to customer needs 🚚 Delivery: Throughout Europe 📄 VAT Invoice: We issue VAT EU invoices 📧 B2B Contact:info@ledmax.co
Detailed specifications for a specific size and model can be found in the attached illustrative photos.
